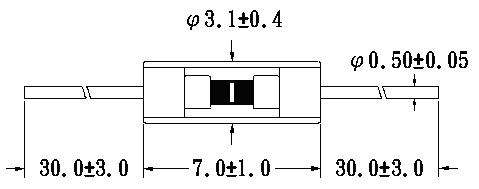

Size:φ3.1mm Voltage:300~500 V Surge current capacity(8×20)μ Sec:1000A General application: ⇒For Telecom Condition Products CPE Side Tip-Ring Signal Wire XDSL
UL File No.:E205458
Part No.
DC Sparkover
Voltage Vs(V)
Impulse Sparkover
Voltage Vi(V)
Insulation Resistance
Capacitance
C(PF)
Surge Current Capacity (8×20)μ Sec
IR
(MΩ)
Appliced Voltage
201 LB
160＜LB＜360
＜650 V
≧100
DC 100V
≦1
1000 A
301 LB
260＜LB＜540
351 LB
280＜LB＜630
＜700 V
401 LB
330＜LB＜720
＜750 V
471 LB
380＜LB＜840
＜1000 V
501 LB
400＜LB＜900
＜1000V
