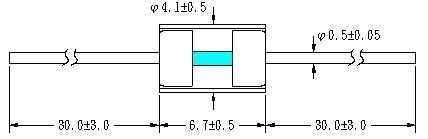

Size:φ4.1mm Voltage:3200~4600 V Surge current capacity(8×20)μ Sec:1000A General application: ⇒For Power System Condition Products Power-Line to Ground Hi-pot 1600V AC 1Min、1800V AC 3Sec
Condition
Products
Power-Line to Ground
Hi-pot 1600V AC 1Min、1800V AC 3Sec
Rating (Initial Characteristics)

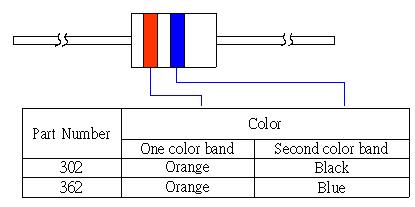

Part No.
DC Sparkover
Voltage Vs(V)
Insulation Resistance
Capacitance
C(PF)
Surge Current Capacity (8×20)μ Sec
IR (MΩ)
Appliced Voltage
LSE-302W-D
2550~3600
≧1000
DC 500V
≦1
1000 A
LSE-362W-D
3060~4320
