362W
LSE-XXX W SERIES(HIGH VOLTAGE)

Size:φ3.1mm
Voltage:3200~4600 V
Surge current capacity(8×20)μ Sec:1000A
General application:
⇒For Power System

Condition

Products
Power-Line to Ground Hi-pot 1600V AC 1Min、1800V AC 3Sec

UL File No.:E316354


  Rating (Initial Characteristics)

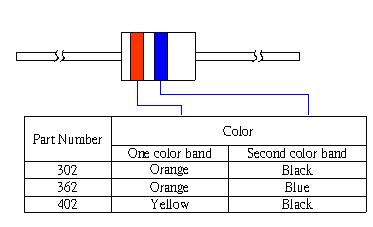

Part No.
DC Sparkover
Voltage Vs(V)
Insulation Resistance
Capacitance
C(PF)
Surge Current Capacity (8×20)μ Sec
IR (MΩ)
Appliced Voltage
LSE-302W
2550~3600
≧1000
DC 500V
≦1
1000 A
LSE-362W
3060~4320
LSE-402W
3200~4800

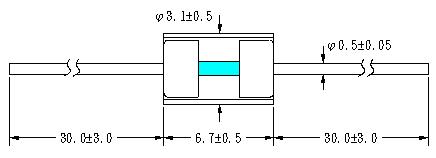

    Dimension:(Unit:mm)
