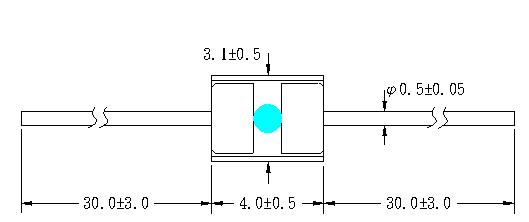

Size:φ3.1mm

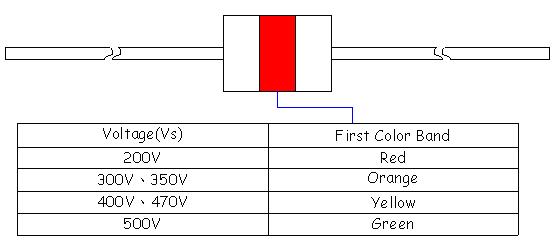

Voltage:200~500 V
Surge current capacity(8×20)μ Sec:2000A
General application:
⇒For Telecom

Condition	Products
CPE Side Tip-Ring Signal Wire	Splitter
CO Side Tip-Ring Signal Wire	Splitter
General	(ITU-T)Other in customer

⇒For Power System

Condition	Products
Common-Choke Protector(150W Min)	LCD-TV、Projector
Power-Line to Ground	Hi-pot 1000V/1500V 1 Min

UL File No.:E316354
