φ2.6 SPG

R-KING

P-KING
SPG-XXX (M/L/K) SERIES

Size:φ2.6mm
Voltage:200~500 V
Surge current capacity(8×20)μ Sec:500A
General application:
⇒For Telecom

Condition Products
CPE Side Tip-Ring
 Signal Wire		 56K Modem、Information communication video phone、Ethernet、XDSL、Splitter
CO Side Tip-Ring
Signal Wire		 XDSL、Splitter
Wireless  Antenna
General  (ITU-T)The other use









⇒For Power System
Condition Products
Common Choke Protector
(150W min)		 LCD TV、Server
Other Audio、Sound、CRT-RGB & Grid

UL File No.:E205458


Rating (Initial Characteristics)
Part No.
DC Sparkover
Voltage Vs
(V)
Insulation Resistance
Capacitance
C(PF)
Surge Current
Capacity
(8×20)μ Sec
IR
(MΩ)
Appliced Voltage
SPG-201
160~240
≧100
DC 100V
≦1
500 A
SPG-301
240~360
SPG-351
297~403
SPG-401
320~480
SPG-501
400~600
DV250V

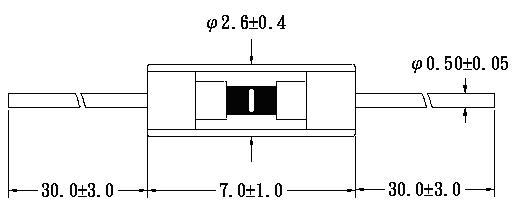

   Dimension:(Unit:mm)
