LSE-XXX M-X 3P LF(φ5×7.2) |
|
Size:φ5×7.2
Volatge:75~1100V
Impulse Discharge Current(8/20μs):5、10(KA)
Altemating Discharge Current:5、10(A)
General application:
⇒For Telecom
|
Condition
|
Products
|
|
CPE Side Tip-Ring
Signal Wire
|
Ethernet、XDSL
|
|
Wireless
|
Antenna
|
⇒For Power System
|
Condition
|
Products
|
|
Common Choke Protector
(150W min)
|
Projector
|
UL File No.:E205458
|
|
|
|
Part No
|
DC
Breakdown
Voltage
（V）
|
Maximum
Impulse
Breakdown
Voltage
（V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）
（KA）
|
Alternating
Discharge
Current
（A）
|
|
100V/s
|
100V/µs
|
1000V/µs
|
1 time
|
10 times
5 times each polarity
|
50HZ, 1sec
|
Single
9 cycle
|
|
LSE-075M-X 3P
|
75±20%
|
600
|
700
|
10
|
5
|
5
|
30
|
|
LSE-090M-X 3P
|
90±20%
|
500
|
600
|
10
|
5
|
5
|
30
|
|
LSE-120M-X 3P
|
120±20%
|
500
|
600
|
10
|
5
|
5
|
30
|
|
LSE-150M-X 3P
|
150±20%
|
500
|
600
|
10
|
5
|
5
|
30
|
|
LSE-200M-X 3P
|
200±20%
|
600
|
700
|
15
|
10
|
10
|
60
|
|
LSE-230M-X 3P
|
230±20%
|
600
|
700
|
15
|
10
|
10
|
60
|
|
LSE-250M-X 3P
|
250±20%
|
600
|
700
|
15
|
10
|
10
|
60
|
|
LSE-350M-X 3P
|
350±20%
|
650
|
750
|
15
|
10
|
10
|
60
|
|
LSE-400M-X 3P
|
400±20%
|
700
|
800
|
15
|
10
|
10
|
60
|
|
LSE-420M-X 3P
|
420±20%
|
700
|
800
|
15
|
10
|
10
|
60
|
|
LSE-470M-X 3P
|
470±20%
|
800
|
900
|
15
|
10
|
10
|
60
|
|
LSE-600M-X 3P
|
600±20%
|
900
|
1000
|
10
|
5
|
5
|
60
|
|
LSE-800M-X 3P
|
800±20%
|
1150
|
1400
|
10
|
5
|
5
|
30
|
|
LSE-1100M-X 3P
|
1100±20%
|
1450
|
1750
|
10
|
5
|
5
|
30
|

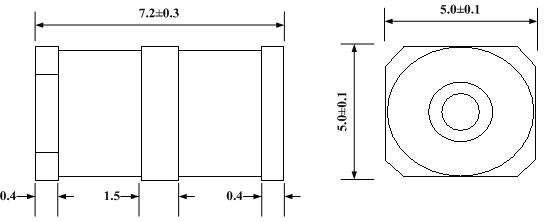

Dimensions (Unit : mm)
|
|
|
|
|
 |
|
