LSE-XXX L-X 3P LF(φ8×10) |
|
Size:φ8×10mm
Voltage:75~600V
Maximum Impulse Discharge Current(8/20μs): 20(KA)
Altemating Discharge Current: 20(A)
General application:
⇒For Telecom
|
Condition
|
Products
|
CO-Side Tip-Ring
Signal Wire |
XDSL |
⇒For Power System
|
Condition
|
Products
|
| Power-Line To Ground |
Hi-pot 1000V AC 1Min |
| Out-Side Power Line |
HID-Lights、LED-Lights |
UL File No.:E205458
|
|
|
|
Part No
|
DC
Breakdown
Voltage
（V）
|
Maximum
Impulse
Breakdown
Voltage
（V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）
（KA）
|
Alternating
Discharge
Current
（A）
|
|
100V/s
|
100V/µs
|
1000V/µs
|
10 times
5 times each polarity
|
50HZ, 1sec
|
|
LSE-075L-X 3P
|
75±20%
|
600
|
700
|
20
|
20
|
|
LSE-090L-X 3P
|
90±20%
|
600
|
700
|
20
|
20
|
|
LSE-145L-X 3P
|
145±20%
|
500
|
700
|
20
|
20
|
|
LSE-201L-X 3P
|
200±20%
|
500
|
700
|
20
|
20
|
|
LSE-231L-X 3P
|
230±20%
|
600
|
700
|
20
|
20
|
|
LSE-251L-X 3P
|
250±20%
|
600
|
700
|
20
|
20
|
|
LSE-351L-X 3P
|
350±20%
|
700
|
900
|
20
|
20
|
|
LSE-401L-X 3P
|
400±20%
|
800
|
1000
|
20
|
20
|
|
LSE-421L-X 3P
|
420±20%
|
800
|
1000
|
20
|
20
|
|
LSE-471L-X 3P
|
470±20%
|
1100
|
1400
|
20
|
20
|
|
LSE-601L-X 3P
|
600±20%
|
1200
|
1500
|
20
|
20
|

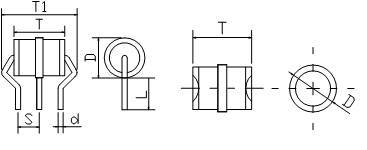

Dimensions: (Unit:mm)
|
Item
|
Dimensions
|
|
Spec.
|
Tolerance
|
|
D
|
8.0
|
+0.2,-0.8
|
|
T
|
10.0
|
±0.5
|
|
T1
|
13.4
|
+0.8,-0.5
|
|
L
|
7.5
|
±0.5
|
|
S
|
4.4
|
±0.4
|
|
d
|
1.0
|
±0.05
|
|
|
|
|
|
 |
|
