LSE-XXX NX 4532 LF

Size:4.5×3.2mm
Voltage:75~600V
Impulse Discharge Current (8/20μs):2 (KA)
Impulse Withstanding Voltage Capacity(10/700μs):4 (KV)

General application:
⇒For Telecom

Condition

Products

CPE Side Tip-Ring
Signal Wire

Ethernet、XDSL

Wireless

Antenna

⇒For Power System

Condition

Products

Common Choke Protector
(150W min)

Projector

UL File No.:E205458

Part No	DC Breakdown Voltage	Impulse Discharge Current	Impulse Withstanding Voltage Capacity	Impulse Life Test	Insulation Resistance	Capacitance (1MHz 1V)
LSE-075NX 4532	75V 55~95	8/20 us 2000A	10/700 us 4kV Positive/Negative 5 Times	8/20 us 100A 300Times	100MΩ Min (DC 100V)	0.5pF Max.
LSE-090NX 4532	90V 63~117
LSE-120NX 4532	120V 84~156
LSE-150NX 4532	150V 105~195
LSE-200NX 4532	200V 140~260
LSE-230NX 4532	230V 161~299
LSE-300NX 4532	300V 210~390
LSE-350NX 4532	350V 245~455
LSE-400NX 4532	400V 280~520
LSE-420NX 4532	420V 294~546
LSE-470NX 4532	470V 329~611
LSE-500NX 4532	500V 350~650
LSE-600NX 4532	600V 420~780

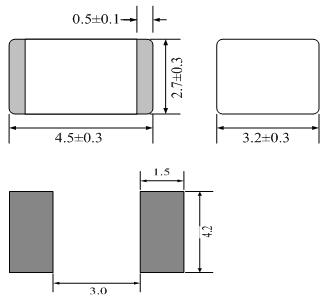

Dimensions & Recommended Pad Size:(Unit:mm)
