LSE-XXX MX 4042 LF |
|
Size:φ4.0×4.2mm
Voltage:75~600V;800~2000V
Maximum Impulse Discharge Current (8/20μs):5 (KA);2 (KA)
Normal Altemating Discharge Current:3 (A);2 (A)
General application:
⇒For Telecom
|
Condition
|
Products
|
|
CPE Side Tip-Ring
Signal Wire
|
Ethernet、XDSL
|
|
Wireless
|
Antenna
|
⇒For Power System
|
Condition
|
Products
|
|
Common Choke Protector
(150W min)
|
Projector
|
UL File No.:E205458
|
|
|
|
|
Part No
|
DC
Breakdown
Voltage
（V）
|
Maximum
Impulse
Breakdown
Voltage
（V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）
（KA）
|
Normal
Alternating
Discharge
Current
（A）
|
|
100V/s
|
100V/µs
|
1000V/µs
|
1 time
|
10 times
|
50Hz,
1sec
|
Single 9cycles
|
|
LSE-075MX 4042
|
75 ±20%
|
700
|
800
|
5
|
3
|
3
|
6
|
|
LSE-090MX 4042
|
90 ±20%
|
700
|
800
|
|
LSE-145MX 4042
|
145 ±20%
|
700
|
800
|
|
LSE-230MX 4042
|
230 ±20%
|
600
|
700
|
|
LSE-250MX 4042
|
250 ±20%
|
600
|
700
|
|
LSE-300MX 4042
|
300 ±20%
|
600
|
700
|
|
LSE-350MX 4042
|
350 ±20%
|
650
|
800
|
|
LSE-400MX 4042
|
400 ±20%
|
700
|
800
|
|
LSE-470MX 4042
|
470 ±20%
|
700
|
800
|
|
LSE-600MX 4042
|
600 ±20%
|
900
|
1000
|
High voltage:
|
Part No
|
DC
Breakdown
Voltage
（V）
|
Maximum
Impulse
Breakdown
Voltage
（V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）（KA）
|
Normal
Alternating
Discharge
Current
（A）
|
|
100V/s
|
100V/µs
|
1000V/µs
|
1 time
|
10 times
|
50Hz,
1sec
|
Single 9cycles
|
|
LSE-800MX 4042
|
800 ±20%
|
1300
|
1400
|
3
|
2
|
2
|
4
|
|
LSE-1000MX 4042
|
1000 ±20%
|
1500
|
1600
|
|
LSE-1200MX 4042
|
1200 ±20%
|
1700
|
1800
|
|
LSE-1400MX 4042
|
1400 ±20%
|
1700
|
1800
|
|
LSE-1500MX 4042
|
1500 ±20%
|
2000
|
2100
|
|
LSE-1600MX 4042
|
1600 ±20%
|
2000
|
2100
|
|
LSE-1800MX 4042
|
1800 ±20%
|
2500
|
2600
|
|
LSE-2000MX 4042
|
2000 ±20%
|
2700
|
2800
|

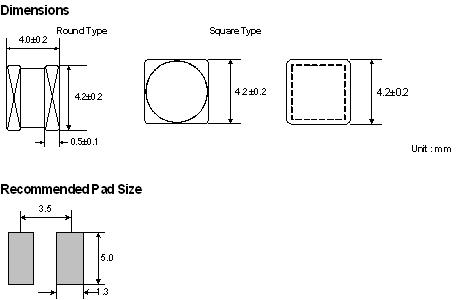

Dimensions & Recommended Pad Size:(Unit:mm)
|
|
|
|
|
 |
|
