LSE-XXX MX 6040 LF |
|
Size:φ6.2×4.2mm
Voltage:
75~800V;1000V~3000V
Maximum Impulse Discharge Current (8/20μs):
5、3 (KA)
Normal Altemating Discharge Current:5、3(A)
General application:
⇒For Telecom
|
Condition
|
Products
|
|
CPE Side Tip-Ring
Signal Wire
|
Ethernet、XDSL
|
|
Wireless
|
Antenna
|
⇒For Power System
|
Condition
|
Products
|
|
Common Choke Protector
(150W min)
|
Projector
|
UL File No.:E205458/E316354
|
|
|
Specification:
|
Part No
|
DC
Breakdown
Voltage（V）
|
Maximum
Impulse
Breakdown
Voltage （V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）（KA）
|
Normal
Alternating
Discharge
Current （A）
|
|
100V/s
|
100V/µs
|
1000V/µs
|
1 time
|
10 times
|
50Hz,
1sec
|
Single 9cycles
|
|
LSE-075MX 6040
|
75 ±20%
|
600
|
700
|
8
|
5
|
5
|
15
|
|
LSE-090MX 6040
|
90 ±20%
|
600
|
700
|
|
LSE-145MX 6040
|
145 ±20%
|
500
|
700
|
|
LSE-230MX 6040
|
230 ±20%
|
450
|
550
|
|
LSE-250MX 6040
|
250 ±20%
|
450
|
550
|
|
LSE-300MX 6040
|
300 ±20%
|
500
|
600
|
|
LSE-350MX 6040
|
350 ±20%
|
500
|
600
|
|
LSE-400MX 6040
|
400 ±20%
|
600
|
700
|
|
LSE-470MX 6040
|
470 ±20%
|
700
|
800
|
|
LSE-600MX 6040
|
600 ±20%
|
800
|
900
|
|
LSE-800MX 6040
|
800 ±20%
|
900
|
1000
|
Hight Voltage Series:
|
Part No
|
DC
Breakdown
Voltage
（V）
|
Maximum
Impulse
Breakdown
Voltage
（V）
|
Maximum
Impulse
Discharge
Current
（8/20 µs）
（KA）
|
Normal
Alternating
Discharge
Current
（A）
|
|
5KV/s
|
100V/µs
|
1000V/µs
|
1 time
|
10 times
|
50Hz,
1sec
|
Single 9cycles
|
|
LSE-1000MX 6040
|
1000±20%
|
1500
|
1600
|
5
|
3
|
3
|
10
|
|
LSE-1200MX 6040
|
1200 ±20%
|
1700
|
1800
|
|
LSE-1800MX 6040
|
1800 ±20%
|
2500
|
2600
|
|
LSE-2000MX 6040
|
2000 ±20%
|
2700
|
2800
|
|
LSE-2500MX 6040
|
2500 ±20%
|
3100
|
3200
|
|
LSE-2700MX 6040
|
2700 ±20%
|
3300
|
3400
|
|
LSE-3000MX 6040
|
3000 ±20%
|
3600
|
3700
|

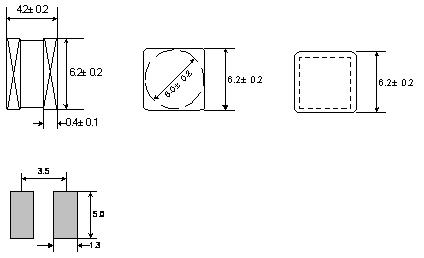

Dimensions & Recommended Pad Size:(Unit:mm)
 |
|
|
|
|
 |
|
