φ4.1mm-SPG
LSE-XXX M SERIES(HIGH VOLTAGE)
Size:φ4.1mm
Voltage:2400~4800 V
Surge current capacity(8×20)μ Sec:2000A
General application:
⇒For Power System
Condition
Products
Power-Line to Ground Hi-pot 1600V AC 3mins

UL File No.:E316354

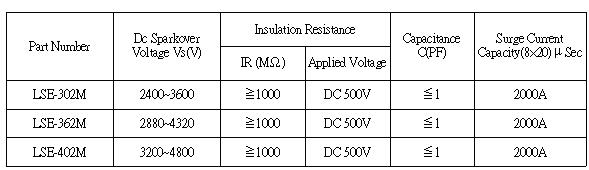

Rating (Initial Characteristics)

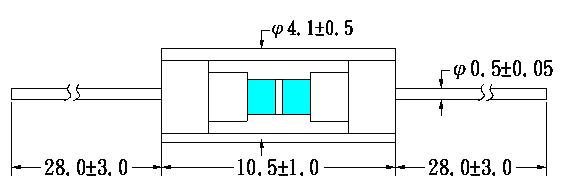

Dimension: (Unit:mm)
