4042-GDT
LSE-XXX MX 4042 LF
Size:φ4.0×4.2mm
Voltage:75~600V;800~2000V
Maximum Impulse Discharge Current (8/20μs):5 (KA); 2 (KA)
Normal Altemating Discharge Current:3 (A); 2 (A)



General application:
⇒For Telecom

Condition

Products

CPE Side Tip-Ring
Signal Wire

Ethernet、XDSL

Wireless







 Antenna








⇒For Power System

Condition

Products

Common Choke Protector
(150W min)

Projector

 UL File No.:E205458/E316354



Part No
DC
Breakdown
Voltage


（V）
Maximum
Impulse
Breakdown
Voltage

（V）
Maximum
Impulse
Discharge
Current
（8/20 µs）
（KA）
Normal
Alternating
 Discharge
 Current

（A）
100V/s
100V/µs
1000V/µs
1 time
10 times
50Hz,
1sec
Single 9cycles
LSE-075MX 4042
75 ±20%
700
800
5
3
3
6
LSE-090MX 4042
90 ±20%
700
800
LSE-145MX 4042
145 ±20%
700
800
LSE-230MX 4042
230 ±20%
600
700
LSE-250MX 4042
250 ±20%
600
700
LSE-300MX 4042
300 ±20%
600
700
LSE-350MX 4042
350 ±20%
650
800
LSE-400MX 4042
400 ±20%
700
800
LSE-470MX 4042
470 ±20%
700
800
LSE-600MX 4042
600 ±20%
900
1000

 High voltage:

Part No

DC

Breakdown

Voltage



（V）

Maximum

Impulse

Breakdown

Voltage

 （V）

Maximum

Impulse

Discharge

Current

（8/20 µs）（KA）

Normal

Alternating

 Discharge

 Current

 （A）

100V/s

100V/µs

1000V/µs

1 time

10 times

50Hz,

1sec

Single 9cycles

LSE-800MX 4042

800 ±20%

1300

1400

3

2

2

4

LSE-1000MX 4042

1000 ±20%

1500

1600

LSE-1200MX 4042

1200 ±20%

1700

1800

LSE-1400MX 4042

1400 ±20%

1700

1800

LSE-1500MX 4042

1500 ±20%

2000

2100

LSE-1600MX 4042

1600 ±20%

2000

2100

LSE-1800MX 4042

1800 ±20%

2500

2600

LSE-2000MX 4042

2000 ±20%

2700

2800

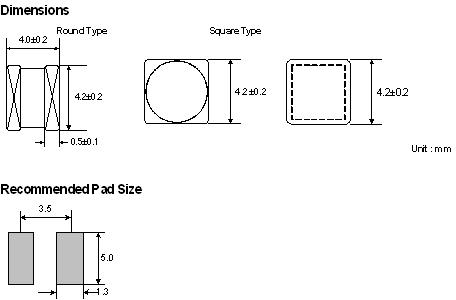

Dimensions & Recommended Pad Size:(Unit:mm)
