Spark Gap
Gas Discharge Tube


HOME > PRODUCTS

LSE-XXX W SERIES(HIGH VOLTAGE)

Size:φ3.1mm
Voltage:3200~4600 V
Surge current capacity(8×20)μ Sec:1000A
General application:
⇒For Power System

Condition

Products

Power-Line to Ground

Hi-pot 1600V AC 1Min、1800V AC 3Sec

UL File No.:E316354

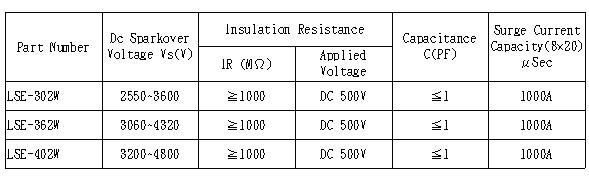

Rating (Initial Characteristics)

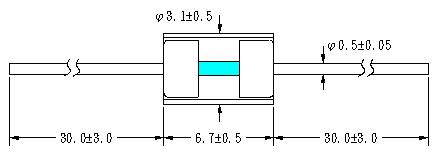

 Dimension:(Unit:mm)
