φ3.1 SPG
SPG-XXX LB SERIES

Size:φ3.1mm
Voltage:300~500 V
Surge current capacity(8×20)μ Sec:1000A
General application:
⇒For Telecom
Condition Products
CPE Side Tip-Ring
Signal Wire		 XDSL





UL File No.:E205458


  Rating (Initial Characteristics)
Part No.
DC Sparkover
Voltage Vs(V)
Impulse Sparkover
Voltage Vi(V)
Insulation Resistance
Capacitance
C(PF)
Surge Current Capacity (8×20)μ Sec
IR
(MΩ)
Appliced Voltage
SPG-201 LB
160＜LB＜360
＜650 V
≧100
DC 100V
≦1
1000 A
SPG-301 LB
260＜LB＜540
＜650 V
SPG-351 LB
280＜LB＜630
＜700 V
SPG-401 LB
330＜LB＜720
＜750 V
SPG-471 LB
380＜LB＜840
＜1000 V
SPG-501 LB
400＜LB＜900
＜1000V

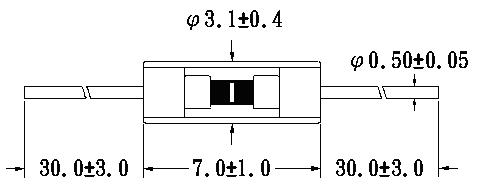

 Dimension:(Unit:mm)
