6040-GDT
LSE-XXX MX 6040 LF
Size:φ6.2×4.2mm
Voltage:
75~800V;1000V~3000V
Maximum Impulse Discharge Current (8/20μs):
5;3(KA)
Normal Altemating Discharge Current:5;3(A)

General application:
⇒For Telecom

Condition

Products

CPE Side Tip-Ring
Signal Wire

Ethernet、XDSL

Wireless

Antenna



⇒For Power System

Condition

Products

Common Choke Protector
(150W min)

Projector

UL File No.:E205458/E316354



Rating (Initial Characteristics

Part No
DC
Breakdown
Voltage
 （V）
Maximum
Impulse
Breakdown
Voltage
（V）
Maximum
Impulse
Discharge
Current
（8/20 µs）（KA）
Normal
Alternating
 Discharge
 Current
（A）
100V/s
100V/µs
1000V/µs
1 time
10 times
50Hz,
1sec
Single 9cycles
LSE-075MX 6040
75 ±20%
600
700
8
5
5
15
LSE-090MX 6040
90 ±20%
600
700
LSE-145MX 6040
145 ±20%
500
700
LSE-230MX 6040
230 ±20%
450
550
LSE-250MX 6040
250 ±20%
450
550
LSE-300MX 6040
300 ±20%
500
600
LSE-350MX 6040
350 ±20%
500
600
LSE-400MX 6040
400 ±20%
600
700
LSE-470MX 6040
470 ±20%
700
800
LSE-600MX 6040
600 ±20%
800
900
LSE-800MX 6040
800 ±20%
900
1000
LSE-1000MX 6040
1000±20%
1500
1600
5
3
3
10
LSE-1200MX 6040
1200 ±20%
1700
1800
LSE-1800MX 6040
1800 ±20%
2500
2600
LSE-2000MX 6040
2000 ±20%
2700
2800
LSE-2500MX 6040
2500 ±20%
3100
3200
LSE-2700MX 6040
2700 ±20%
3300
3400
LSE-3000MX 6040
3000 ±20%
3600
3700

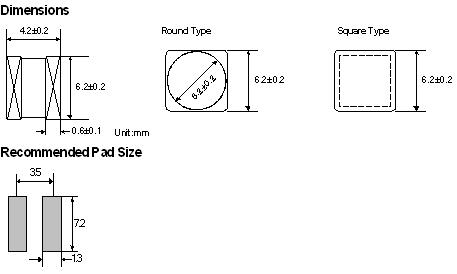

Dimensions & Recommended Pad Size:(Unit:mm)
